Cancelling Pending Remittance Transactions¶

This document outlines the process for cancelling remittance transactions that are stuck in a pending status by sending a cancellation request to the message bus.

Use Case¶

Cancelling remittance transactions that are stuck in a pending status.

Procedure¶

Manual¶

Identify the Transaction:
- An issue is received, reporting a problem with a remittance transaction.
- The issue contains a link to Hydra, which provides the Transaction ID and Owner Resource ID (or Remittance Transaction Id that should be used below).
Locate the Transaction in the Database:
- Find the transaction in the appropriate SQL database (e.g., prod-mf-remittance-use2-sqlDb for production. Be careful to chose appropriate database. For example mf related to MoneyOut service).
- Use the Remittance Transaction Id from Hydra in the following SQL query to retrieve transaction details (Replace <REMITTANCE_TRANSACTION_ID> with the actual Owner ID obtained from Hydra):

SELECT [TransactionId], [HasCancellationRequested], [IsReRouted], [ProviderId], [TransactionStatus], [TransactionStatusReason], [ProviderReferenceId]
FROM [dbo].[Transaction]
WHERE TransactionId IN ('<REMITTANCE_TRANSACTION_ID>')

Prepare the Event JSON:
- Use the SendEventsToServiceBus tool project located IN be-devtools -> Minority.Tools
- Create a JSON file with the following format (the example below contains 2 events that will be send to service bus):
- Make sure you use correct envrionment's connection string for Service Bus.

{"body":{"providerTransactionResponse":{"cashPickUpStatus":null,"deliveryTime":5,"endProviderReferenceId":null,"expirationDate":null,"externalTransactionId":"<OWNER_ID_1>","isReRouted":false,"pickUpCode":null,"providerId":<PROVIDER_ID_AS_INT_1>,"remittanceTransactionStatus":"Canceled","reRoutedReason":null,"resultCode":0,"statusReason":"Canceled","version":"V2","code":"0","message":"Canceled"}}}
{"body":{"providerTransactionResponse":{"cashPickUpStatus":null,"deliveryTime":5,"endProviderReferenceId":null,"expirationDate":null,"externalTransactionId":"<OWNER_ID_2>","isReRouted":false,"pickUpCode":null,"providerId":<PROVIDER_ID_AS_INT_1>,"remittanceTransactionStatus":"Canceled","reRoutedReason":null,"resultCode":0,"statusReason":"Canceled","version":"V2","code":"0","message":"Canceled"}}}

- Key points for the JSON file:
- ExternalTransactionId: This field should contain the Owner Resource ID value obtained from Hydra.
- ProviderId: This field should contain the actual ProviderId value retrieved from the SQL query in Step 2.
- The JSON can contain multiple events, one object per transaction.
For example:

Sample Event for Reversing a Transaction:

{"body":{"providerTransactionResponse":{"cashPickUpStatus":null,"deliveryTime":5,"endProviderReferenceId":"5548070606 <Get from Hydra>","expirationDate":null,"externalTransactionId":"<OWNER_Resource_ID>","isReRouted":false,"pickUpCode":null,"providerId":<PROVIDER_ID_AS_INT_1>,"remittanceTransactionStatus":"Reversed","reRoutedReason":null,"resultCode":0,"statusReason":"Reversed","version":"V2","code":"0","message":"ProviderReversed"}}}

Run the SendEventsToServiceBus Tool:

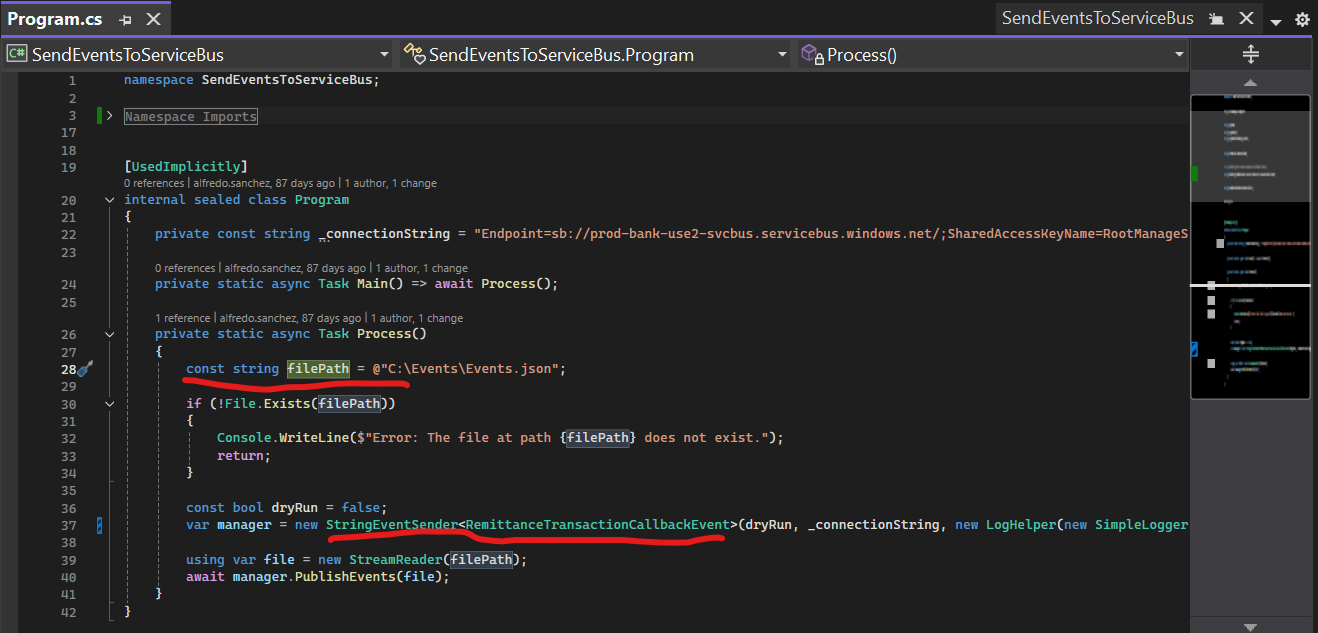

- In the Program.cs file of the SendEventsToServiceBus project:
  - Set the correct file path to your prepared JSON file in the field filePath.
  - Ensure the correct event type is specified in StringEventSender: RemittanceTransactionCallbackEvent.
- Run the program.
- Wait for the program to output "Success", indicating that the cancellation request has been successfully sent to the message bus.

Partially automated¶

Script: Generate Events to Cancel Pending Remittance Transactions¶

The generate_events_to_cancel_pending_remittance_transactions.py script facilitates the generation of events required by the SendToServiceBus tool to initiate the cancellation of pending remittance transactions. It reads transaction IDs from a CSV file, retrieves relevant details from the Remittance and MF Remittance databases, and outputs a JSON file (events.json) formatted for the SendToServiceBus tool.

Prerequisites¶

Before running the script, ensure the following prerequisites are met:

Azure CLI Login: You should be logged in to Azure. Follow the instructions here: How to authenticate to Microsoft products programmatically from your laptop
MSSMS Configuration: Your SQL Server Management Studio (MSSMS) should be configured with a connection to the Production database server.
Python Installation:
* Ensure you have Python installed. The latest version can be downloaded from: https://www.python.org/downloads/
* This script has been tested with Python version 3.13.3.
Python Libraries: Install the necessary Python libraries using pip like:
```
py -m pip install pyodbc azure-identity
```

Configuration¶

The script's behavior is controlled by several constants defined in the Configuration Constants section of the script. Please review and adjust these constants as needed before execution.

How to Use¶

Prepare Input CSV: Create a CSV file (default name: transactions_to_cancel.csv) containing the Transaction IDs of the transactions (the parent one or remittance) you want to cancel. Ensure the column containing the Transaction IDs is named TransactionId (or adjust the TRANSACTION_ID_COLUMN constant if it's different).
Review Configuration: Open the generate_events_to_cancel_pending_remittance_transactions.py script and carefully review the constants in the Configuration Constants section. Adjust the file paths, database server details, database names, and the CANCELLATION_STATUS if necessary.

Run the Script: Execute the script from your terminal using Python:

py generate_events_to_cancel_pending_remittance_transactions.py

Output: Upon successful execution, the script will generate a file named events.json in the same directory where the script is run. This file contains the events formatted for the SendToServiceBus tool.
Send Events: The generated events.json file should then be used as input for the SendToServiceBus tool (which needs to be run manually) to send the cancellation requests to the Service Bus.
